产品规格及说明 | |
---|---|
设备品牌:帝龙 | 设备型号:JLCT50847-13 |
订购价格:电话/面议 | 交货日期:3~30/工作日 |
长度:847 | 色度:紫光 |
加工定制:是 | 照度:2.1mw/cm2 |
玻壳外径:(T5)15 | 玻壳型式:石英玻璃 |

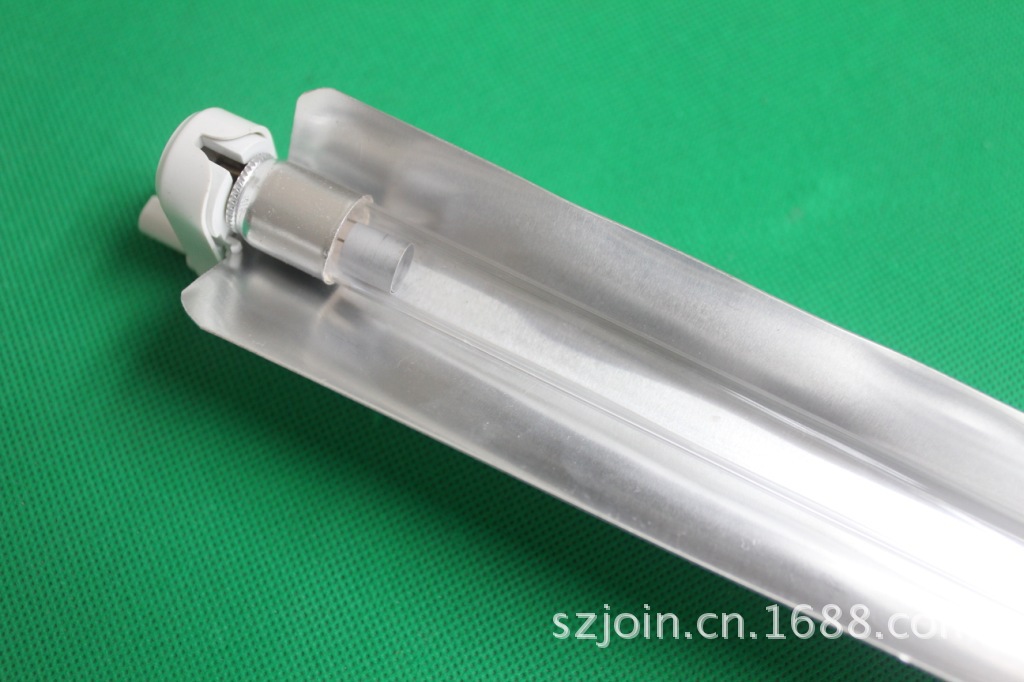

类型:紫外线消毒灯 | 灯管寿命:50000小时 |
灯管电压,电流:455v/0.023 | |
产品标签:紫外线杀菌灯管,w紫外线杀菌灯管,管径15mmt5冷阴极,13w紫外线杀菌灯管,管径冷阴极紫外线杀菌灯管 | |
咨询热线:13715339029 | 售后服务:13715339029 |
技术咨询:13715339029 | ![]() |

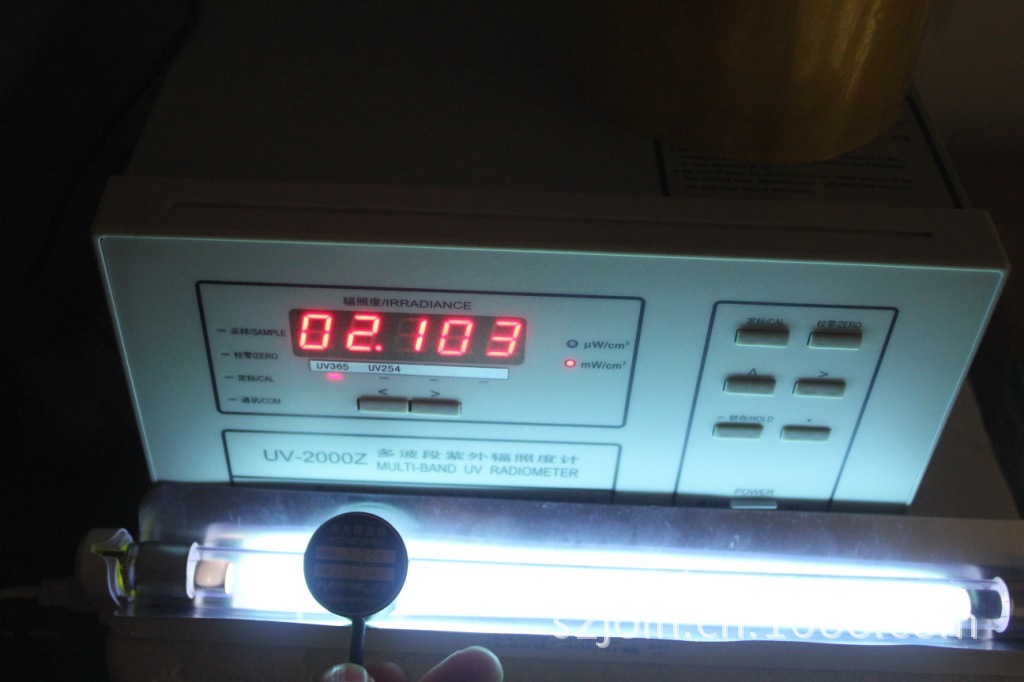

紫外线辐射照度的测量需在光度测量台上进行。测量时,灯以及紫外线辐射照度探头要精确的安装在测量台上,灯-探头的距离要可以自由变化并可被准确测量。如图A.1所示。
To test the strength of uv rays, it should be done on the luminosity testing table. During the testing, the lamp and the uv radiation luminometer probe should be fixed on the testing table precisely and the distance between the lamp and the probe should be changeable flexibly and measured accurately.
为避免杂散光误差,整个光度台通常需置于墙壁刷为黑色的暗室中。如果没有暗室,则需将光度台置于不透光的箱子中,箱子的所有内壁都要贴上黑色丝绒布料。
To avoid error, the whole table should be placed into a black room. In case there is no such room, the table should be placed into a black case, inside which all the walls must be covered with black clothing.
5-2、测试方法 Testing method
将受试灯管固定在测量台上,按灯的特性点燃,灯的中部的水平法线通过紫外线辐射照度计探头的中心。燃点时,灯的发光面(如有的话)应垂直于光轨并与紫外线辐射照度计探头接收面平行。
Fix the testing lamp on the table, light it according to its characters. Let the horizontal middle line of the lamp through the certer of the UV rays rediation luminometer probe. During lighting, the lighting surface(if any) should upright the lighting rail and parallel with the receiving surface of the probe.
将紫外线辐射照度计安装在光轨上,使照度计的接受平面的法线与被测灯管中部的水平法线相重合。
Put the UV radiaion luminometer on the light track,making the middle line of receiving surface of luminometer superposition on the middle level line of testing lamp.
调节紫外线辐射照度计的位置,使紫外线辐射照度计的接受表面距被测灯管表面的距离为0。
Adjust the position of UV radiation luminometer, making the distance between the receiving surface of luminometer and testing lamp surface zero.
按第A.1接通受试灯管的电源使灯正常燃点,并预热5 min。
Connect the power supply and lighting the testing lamp following the instruction of A.1., pre-heat it for 5 min.
应用范围:应用于消毒柜、微波炉、空调美容美发器械等各种家电设备。医院、学校、宾馆、饭店、家庭、办公室的空气和物体表面的消毒杀菌。医院、学校、宾馆、饭店、家庭、办公室的空气和物体表面的消毒杀菌。Applications:hospitals 、school、 hotels、 residences、 offices, etc Disinfect the air and surface of goods. Allkinds of home electric equipment is available.Applications :jea;tj care etc
