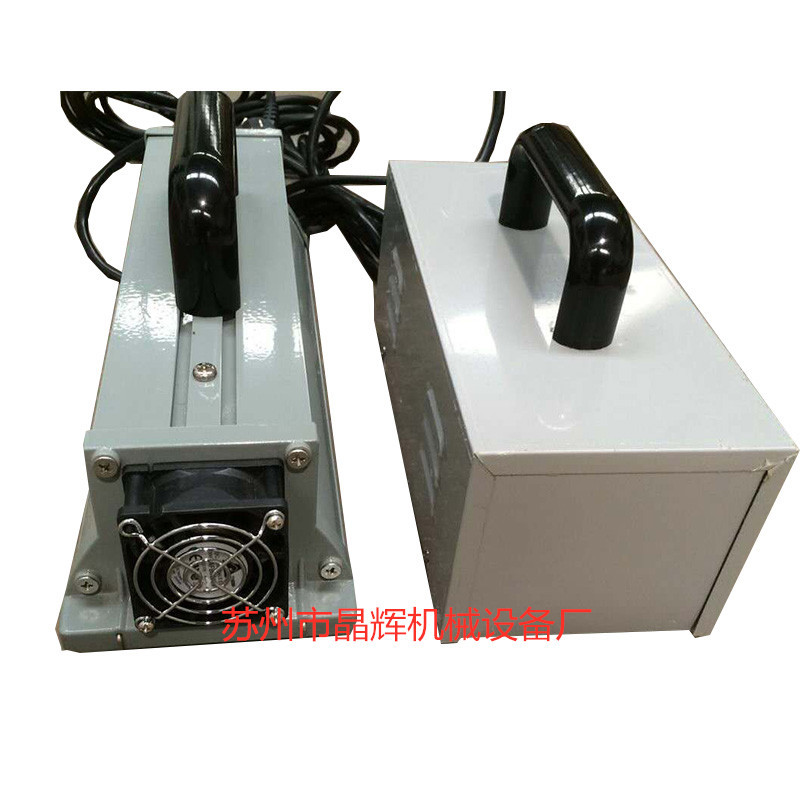

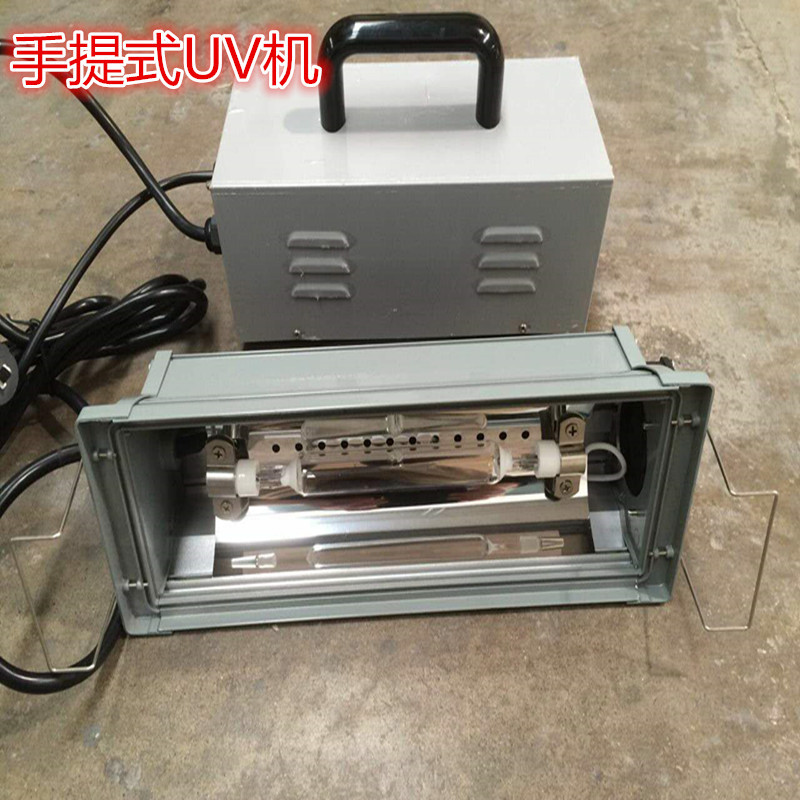

一、设备名称：手提箱式便携UV光固机
二、本机应用范围：
1、异型UV固化、模型制作、工艺品成型等。
2、适用于UV胶水、实验室及临时简单施工维修。
3、适用于电子线路板、木材、石材、纸张、玻璃、光盘、PVC等。
4、适用于汽车大灯翻新、汽车快速修补。
三、本机特点：
1、本机外形美观、体积小重量轻、节省空间、适用面广质量可靠、使用安全、操作方便。
2、本机可移动工作，随意性强，机动灵活，缺点是效率比较低。

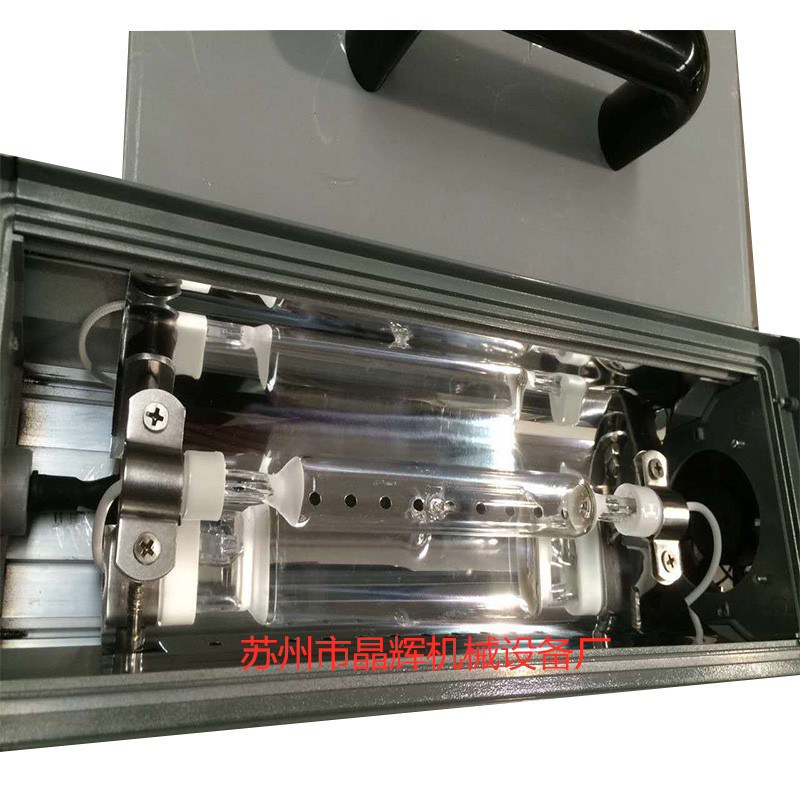

3、进口光源反射镜，最大折射UV光，加强干燥固化效果。
4、先进的散热系统，确保工件不受温度影响，延长灯管的使用寿命。
四、主要技术参数
本光源由电源控制箱及灯箱两部分组成。使用时，先将电源控制箱上的插头插进外接电源插座内，用220V电源供电，供电电路电压不低于220V。
|
电源参数 |
电压220V |
|
|
UV灯功率 |
400W 1KW 2KW 3KW |
|
|
灯管总长 |
120mm 230mm 400mm 500mm |
|
|
灯管发光区 |
80mm 180mm 300mm 400mm |
|
|
波长 |
365nm |
|
|
灯管寿命 |
800小时 |
|
|
外型尺寸 |
电控箱 |
460L*160W*200H |
|
灯箱 |
500L*160W*200H |
|
|
重量 |
电源重量 |
15KG |
|
灯箱重量 |
7KG |
|
I. Name of equipment: portable portable UV fixing machine with suitcase
2. The scope of application of this machine:
1. Special-shaped UV curing, model making, handicraft shaping, etc.
2. It is suitable for UV glue, laboratory and temporary simple construction and maintenance.
3. Applicable to electronic circuit board, wood, stone, paper, glass, CD, PVC, etc.
4. Suitable for automobile headlamp renovation and rapid repair.
Third, the characteristics of this machine:
1. The machine has beautiful appearance, small size, light weight, space saving, wide application, reliable quality, safe use and convenient operation.
2. This machine can work movably, with strong randomness and flexibility. The disadvantage is low efficiency.
3. Imported light source reflector, maximum refraction of UV light, enhance the effect of drying and curing.
4. Advanced heat dissipation system ensures that the workpiece is not affected by temperature and prolongs the service life of the lamp.
IV. Main Technical Parameters
The light source consists of a power control box and a light box. When in use, the plug on the power control box is inserted into the external power socket first, and the power supply circuit is supplied with 220V power supply, and the voltage of the power supply circuit is no less than 220V.
Power parameter
Voltage 220V
UV lamp power：400W 1KW 2KW 3KW
Lamp tube length： 120 mm 230 mm 400 mm 500 mm
Luminous area of lamp：80 mm 180 mm 300 mm 400 mm
wavelength：365nm
Lamp Lifetime：800 hours
External size
Electric control panel：460L*160W*200H
Light boX：500L*160W*200H
weight Power supply weight 15KG
Lamp weight 7KG
